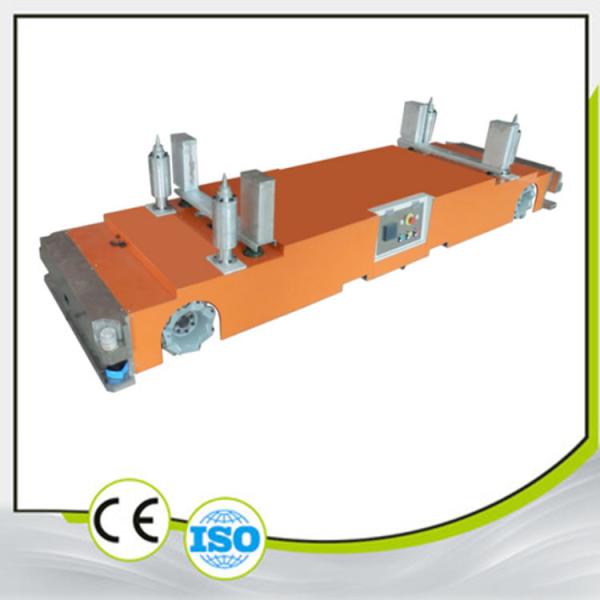

AGV Automated Guided Vehicle High-precision roll material omnidirectional lifting and docking AGV, heavy load 1-10T
Technical Parameters
| Item | Technical Parameters |
| Product Name | High-Precision Roll Docking and Lifting All-Directional AGV |
| Product Size | L × W × H (Customized according to customer requirements) |
| Loading Mode | Precision docking and lifting, lifting stroke customizable to 500mm for rolls |
| Load Capacity | 1000KG-10000KG (According to requirements) |
| Control Mode | PLC, microcontroller (According to requirements) |
| Guidance Mode | Laser, QR code, magnetic stripe (According to requirements) |
| Travel Directions | Forward, backward, left turn, right turn, fork, 360° rotation, lateral movement, translation, omnidirectional |
| Drive Mode | Mecanum wheel drive |
| Drive Power | DC 48V |
| Travel Speed | Linear: 0-40 m/min, Turning: 0-20 m/min |
| Repeat Positioning Accuracy | ±5mm |
| Allowable Road Surface Flatness | ≤5 mm |
| Operating Mode | Continuous operation for 24 hours |
| Climbing Ability | ≤5% |
| Charging Mode | Online charging (side charging) |
| Obstacle Sensor Safety Sensing Range | Detection distance: ≤3 m (adjustable), Sensor detection angle: ≤270° (adjustable), Emergency braking distance: < 20 mm |
| Safety Protection | Front obstacle detection sensor, double protection safety touch edge collision prevention mechanism, emergency stop switch |
| Alarm Form | Audible and visual alarm, tri-color light, horn |
| Operating Noise | Less than 70 dB (A) |
| Battery | Type: Lithium Iron Phosphate Battery, Voltage: 48V, Capacity: 200Ah |
| Design Life | >10 years |
Guangzhou Tianyue Automation Technology Co., Ltd.
Guangzhou Tianyue Automation Technology Co., Ltd.It is a high-tech
enterprise integrating
scientific research, design, assembly, sales,service and system
integration.Mainly provides
intelligent warehousing and handling systems for unmanned workshops
and non-standard
design ontology solutions.Optimize the product structure through
continuous technological
innovation of AGV/AMR/unmanned forklifts,improve the multi-level
product system, and
commit to the development and production of heavy-duty non-standard
mobile equipment to
meet market demand; customize the market demand and build solutions
as the main body
Pioneer in customized smart mobile chassis.At the same time, we
insist on serving logistics
handling in various industries with technological innovation and
service innovation, providing
customers with customized AGV/AMR/unmanned forklifts,providing
technical support wholeheartedly,
and expanding the application fields of AGV.
