Name: Electric Pallet Telescopic Fork Coil Material Double Arm 1000KG4000KG Load
Brand: TIANYUE
Price: 1 USD

Brand Name :

TIANYUE

Certification :

3c.ce

Payment Terms :

T/T

Supply Ability :

100

Delivery Time :

45 work days

Model Number :

TY-FB-HCJ4000

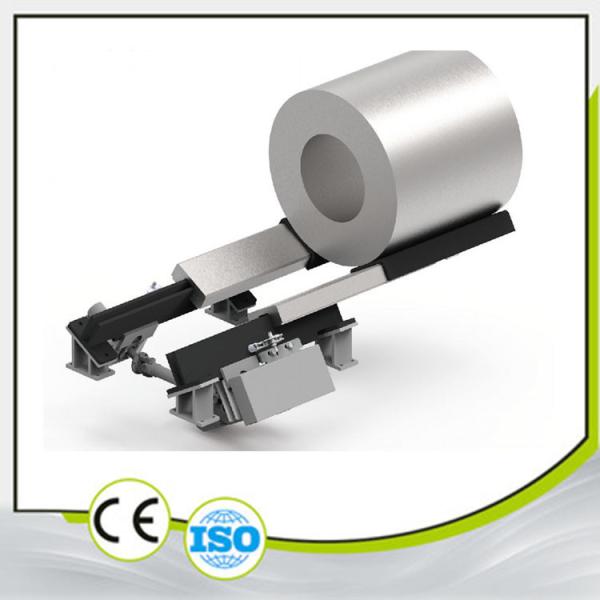

Electric Pallet Telescopic Fork Coil material double-arm telescopic fork, 1000KG-4000KG load, fork distance 1500mm

Technical Parameters

Model	Section	Load Capacity	Length	Speed	Acceleration	Positioning Accuracy
Model 1	180x80 mm	< 1500 kg	600-2000 mm	Loaded 45 m/min, Unloaded 90 m/min	Loaded 0.5 m/s², Unloaded 3 m/s²	±3 mm
Model 2	220x100 mm	≤ 3000 kg	600-2000 mm	Loaded 45 m/min, Unloaded 90 m/min	Loaded 0.5 m/s², Unloaded 3 m/s²	±3 mm
Model 3	240x130 mm	≤ 4000 kg	600-2000 mm	Loaded 45 m/min, Unloaded 90 m/min	Loaded 0.5 m/s², Unloaded 3 m/s²	±3 mm

Material: Made from special high-quality alloy steel, effectively reducing section size and overall weight, with higher load capacity and longer service life.
Design: Optimized section design with less deflection.
Transmission: Uses a combination of helical gears and high-strength chains for transmission, achieving positioning accuracy of ±3 mm.
Environmental Adaptability: Suitable for low-temperature or high-temperature environments.
Customization: Customizable for higher load capacity.
